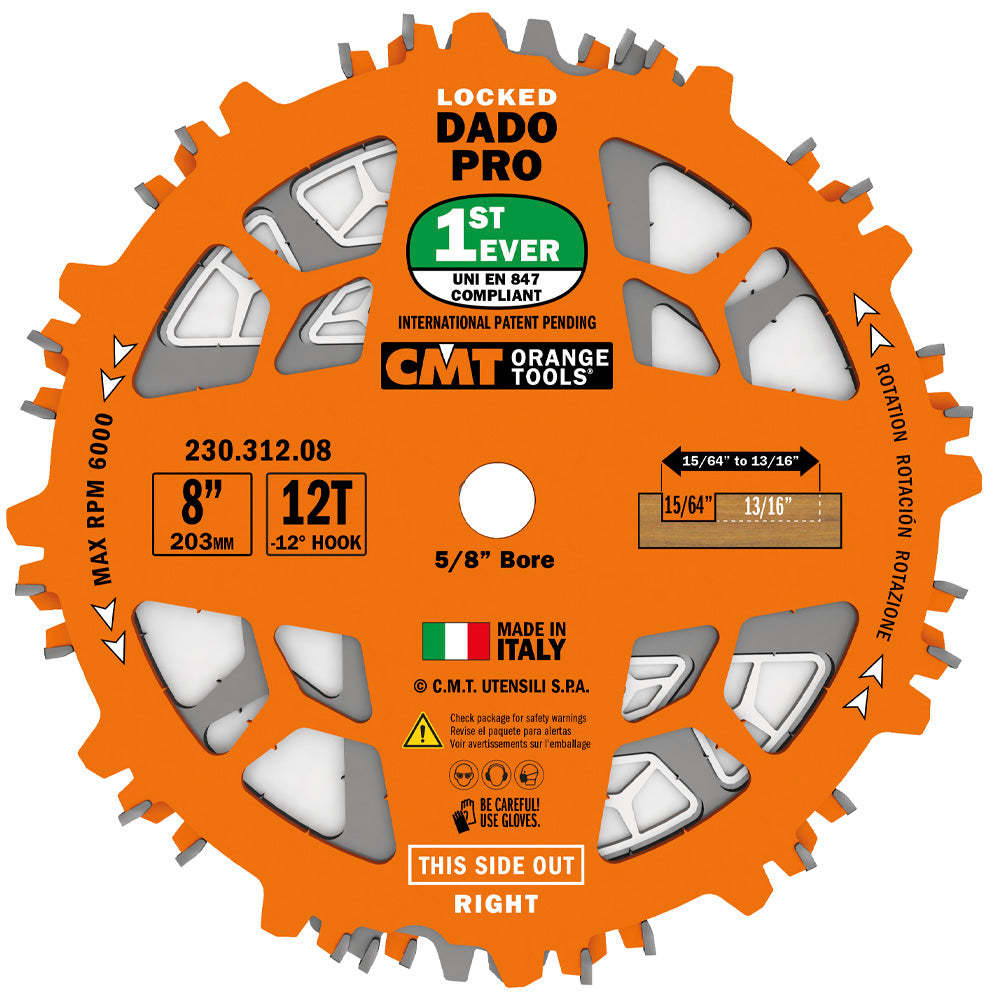

CMT 230.312.08 LOCKED DADO PRO 8’’x15/64” to 13/16”x5/8’’ T=12 FLAT+ATB (-12° NEG)

Description: CMT is proud to introduce a brand new Patent Pending Locked Dado Pro Set unlike any other! This is the FIRST EVER Dado ever deemed UNI EN847 compliant. This means that while the Dado is rotating, the assembled elements will never come into contact with each other! This is possible thanks to unique blade body design and ‘never before seen’ special “lock spacers”.

Features:

• For flat bottom grooves & virtually splinter-free cuts in solid wood,
• laminates & melamines, veneer plywood.
• Orange Shield Coating protects from heat, gumming and corrosion.
• Innovative Setting Points for chipper alignment.
• Compatible with most radial arm saws and stationary table saws, including Sawstop.
• Ideal for underpowered saws.
• Includes shims (plastic & magnetic) and plastic ‘‘lock spacers’’ set for micro-thin adjustability.
• Applications: Dado - Table Saw/Radial Arm Saw
• Blade Size: 8"
• Bore: 5/8"
• Tooth Type: FTG+ATB

Blades Included:

• 3 Total Chippers: 3 x 1/8"

• 3 Locking Nylon Spacers: 1/16"
• 9 Total Shims: 5x .004”, 2x .008”, magnetic shim .012”, magnetic shim .020”\
• Kerf Thickness Range: 15/64" to 13/16"
• Plate Thickness: .098"
• Model Number: 230.312.08
