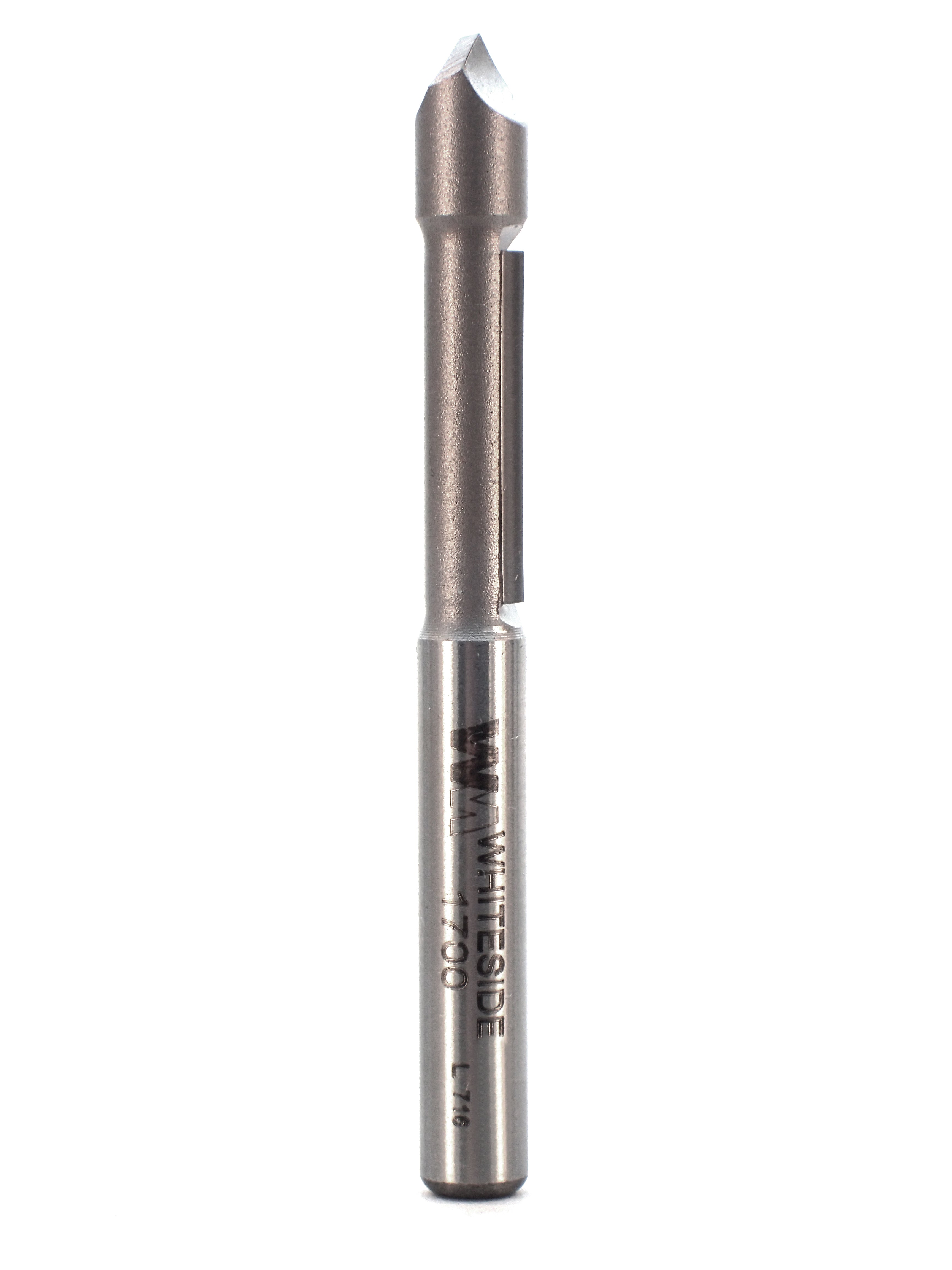

WHITESIDE 1700 PANEL PILOT BIT D=1/4" x 3/4" S=1/4"

Technical Details:

• Carbide tipped, single flute, pilot plunge point panel bit
• Cutting Diameter: 1/4"
• Cutting Length: 3/4"
• Overall Length: 2-5/8"
• Shank Size: 1/4"
• Recommended RPM: 18,000-20,000 (24,000 max)

Applications:
Panel bits are designed for window and door cutouts in industrial markets, RV manufacturing, and construction, for use with a hand-held router. The V-shaped plunge point allows rapid plunging through panels or siding, and the solid steel pilot guide follows panels, framing, or templates for a clean cut that matches the shape being cut out. Cuts natural woods, composite woods, hard plastics, and thin aluminum.

Features:

• Carbide tipped for an excellent balance of quality and cost
• Single flute design provides excellent chip clearance for faster feed rates
• 'V' shaped plunge point allows rapid plunging through panels or siding
• Solid steel pilot guide follows panels, framing, or templates for a clean, matching cut
