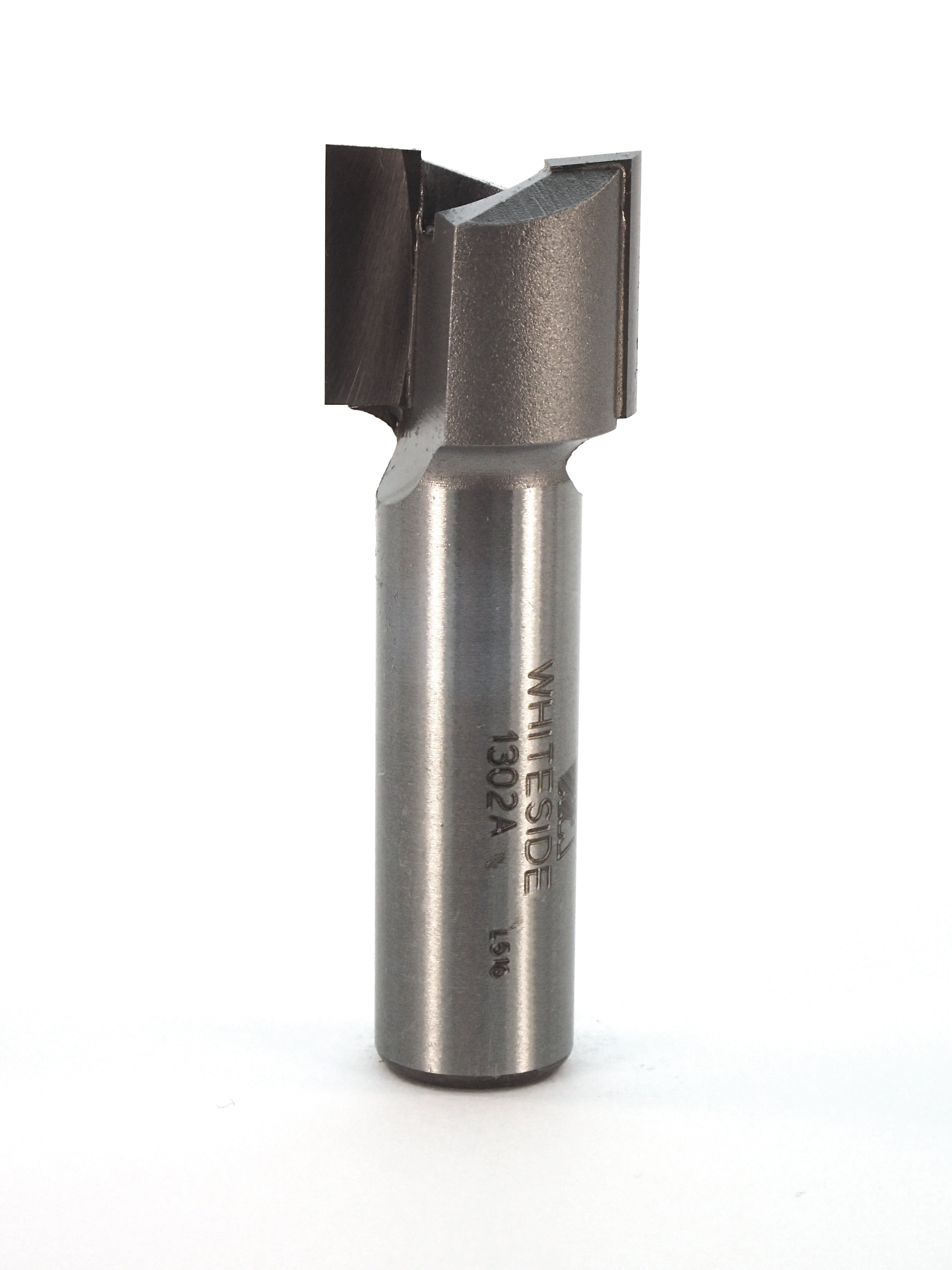

WHITESIDE 1302A MORTISE BIT D=3/4" x 5/8" S=1/2"

Technical Details:

• Carbide tipped, two flute, downshear mortising straight bit
• Cutting Diameter: 3/4"
• Cutting Length: 5/8"
• Overall Length: 2-1/4"
• Shank Size: 1/2"
• Recommended RPM: 12,000-14,000 (18,000 max)

Applications:
Mortise bits are a must-have for cutting out small pockets commonly known as mortises. Featuring a short downshear flute for a finished top edge, these bits are recommended for cutting mortises on door hinges, locksets, and other joinery in natural woods, composite woods, and hard plastics.

Features:

• Carbide tipped for an excellent balance of quality and cost
• Short downshear flute finishes the top edge within the mortise for a clean, precise cut
• Delivers a precise, square-bottom rectangular recess for hinges, locksets, and joinery
• Steel shank creates a rigid tool with reduced vibration
