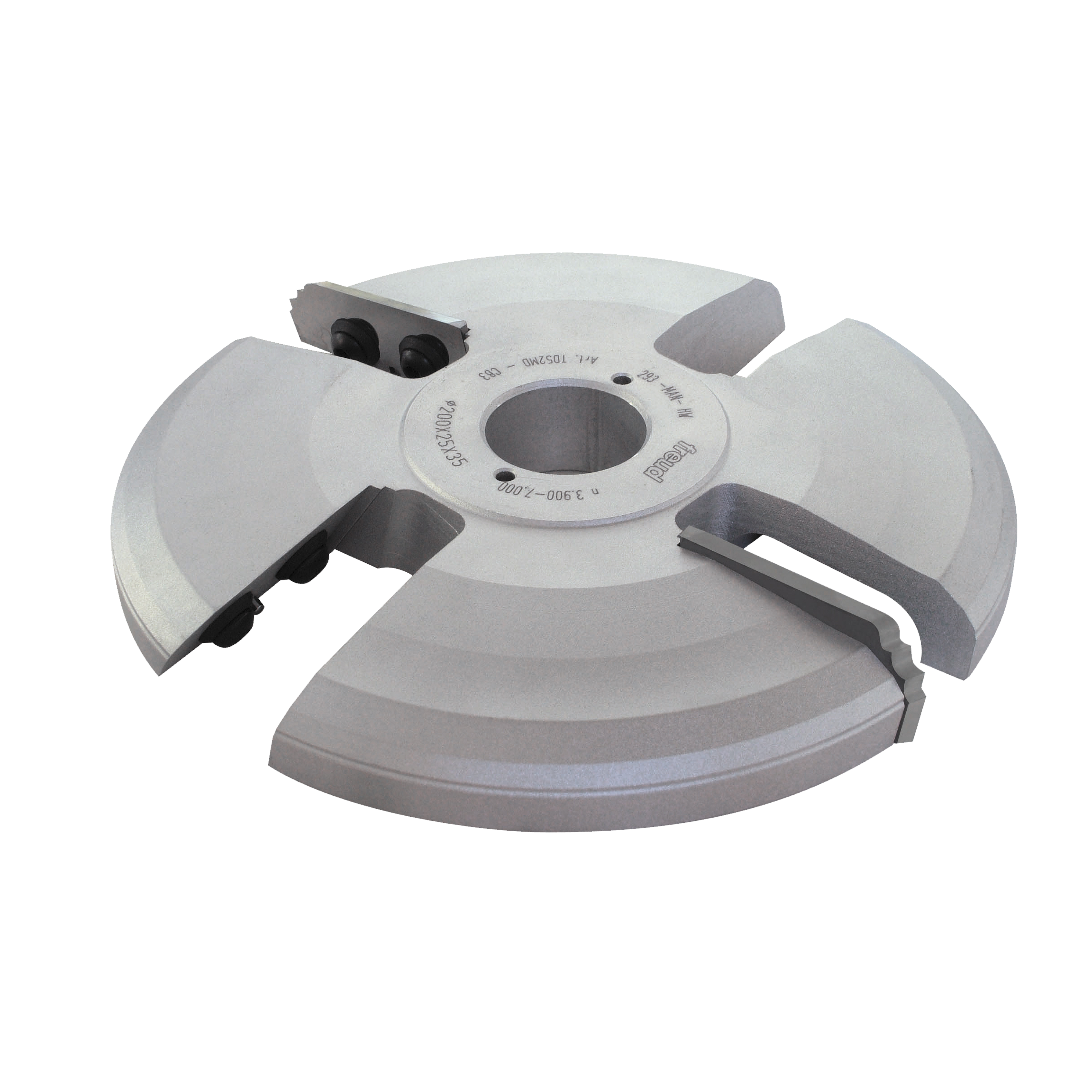

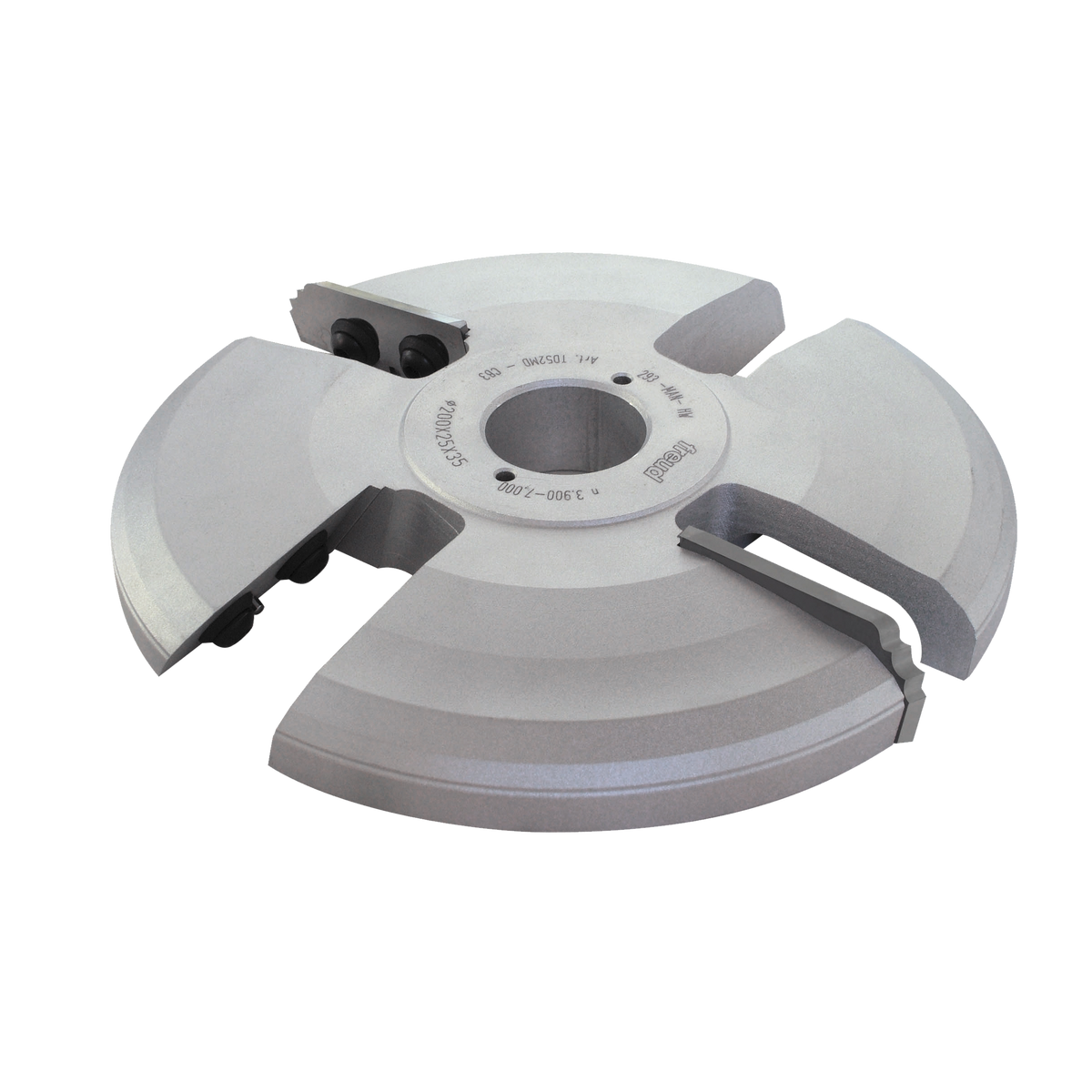

Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

This tool is designed to perfectly cut softwood or hardwood with two knives, with both along the grain or end...
Vendor: Freud
SKU: TD52MDCB3
Product Type: Cutterheads
$2,601.30
$2,601.30
$2,601.30
Free Shipping On Orders $75+
Secure Checkout Secure Payment
Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

$2,601.30 $2,601.30
Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

Freud TD52MDCB3 200mm (Dia.) Raised panels cutterheads

$2,601.30 $2,601.30
Description
Description
x

This tool is designed to perfectly cut softwood or hardwood with two knives, with both along the grain or end grain feeding. This result has been achieved by choosing different cutting angles according to the type of wood to be machined. Only two knives are to be fitted on the tool at one time, in opposite direction. The dimensions of the knives for cutting hardwood and softwood are different but the same profile is achieved.

Features
  • The items TD52M CB3 and TD52MD CB3 are supplied with knives. (2) The items TD52M HB3 and TD52MD HB3 are supplied without knives.
  • This item is supplied with knives.
  • Size shown between brackets is the max. rebore possible
  • Right and Left hand rotation
Features
x
Specifications
Sku TD52MDCB3
Brand Freud
Pack Quantity 1
Item UPC 008925024361
Item Quantity 1
Country of Origin Italy
Bore Diameter 35mm
Carbide Height (h) 25mm
Product Type Cutterheads
Overall Diameter 200mm
Number of Teeth (Z) 2+2
Cutting Materials Hardwoods; Softwoods; MDF; Plywood
