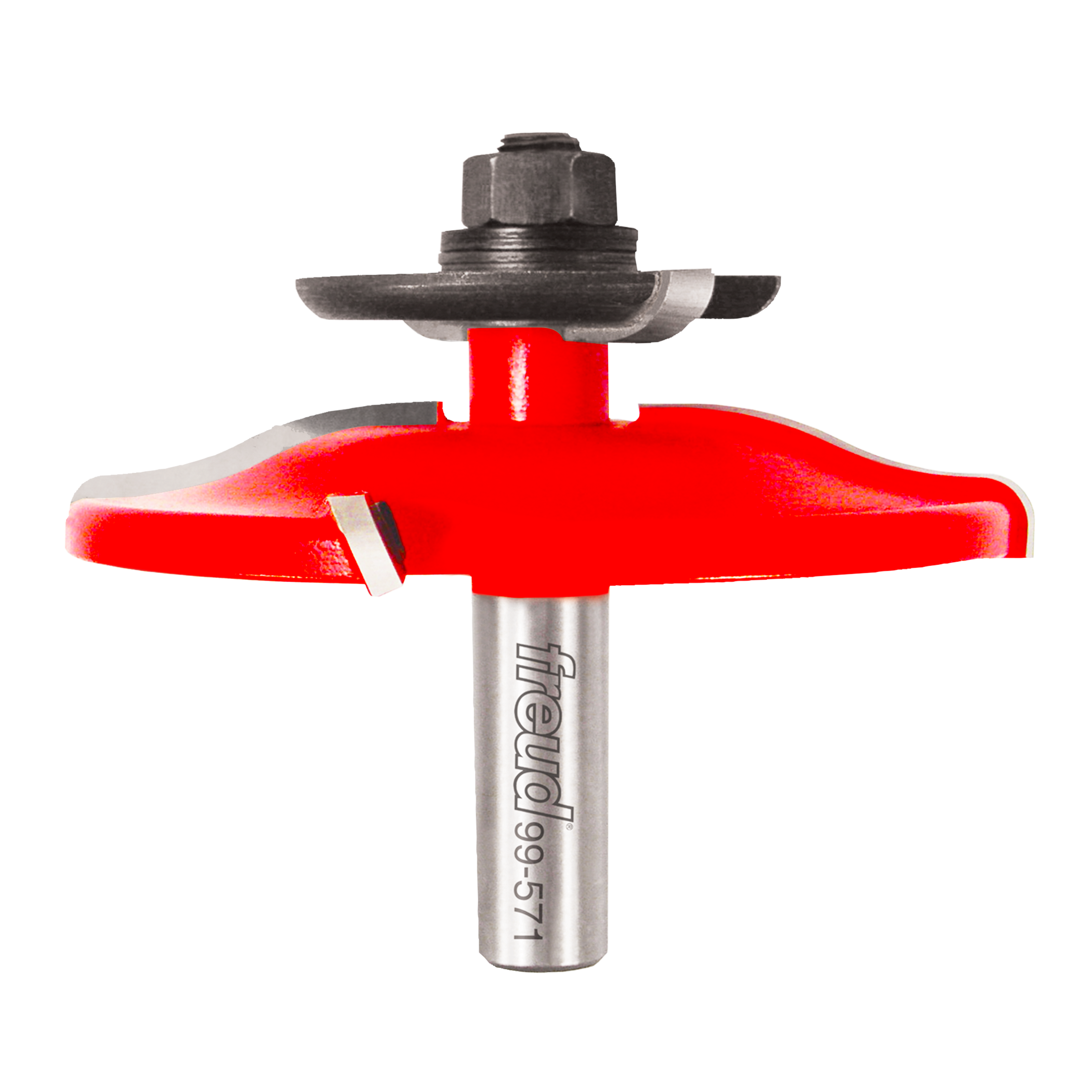

Freud 99-571 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in...
Vendor: Freud
SKU: 99-571
Product Type: Router Bits
$124.97
$177.70
$124.97
Free Shipping On Orders $75+
Secure Checkout Secure Payment
Freud 99-571 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

Freud 99-571 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

$177.70 $124.97

Freud 99-571 3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)

$177.70 $124.97
Description
x
These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut™ design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.
  • Bits include backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
  • Cuts all composition materials, plywoods, hardwoods, and softwoods
  • Use in table-mounted routers with fence only
  • Freud Perma-SHIELD® Coating
Features
x
Sku 99-571
Brand Freud
Pack Quantity 1
Item UPC 008925036852
Item Quantity 1
Item Weight (lb) 0.97
Country of Origin Italy
Number of Cutters 4
Max RPM 12000
Carbide Height (h) 1"
Product Type Router Bits
Overall Diameter 3-1/2"
Overall Length 3"
Small Radius (R2) 5/32"
Large Radius (R1) 1-3/16"
Shank Diameter 1/2"
Cutting Materials Veneered Plywood; Hardwoods; Softwoods; Composites
Specifications
