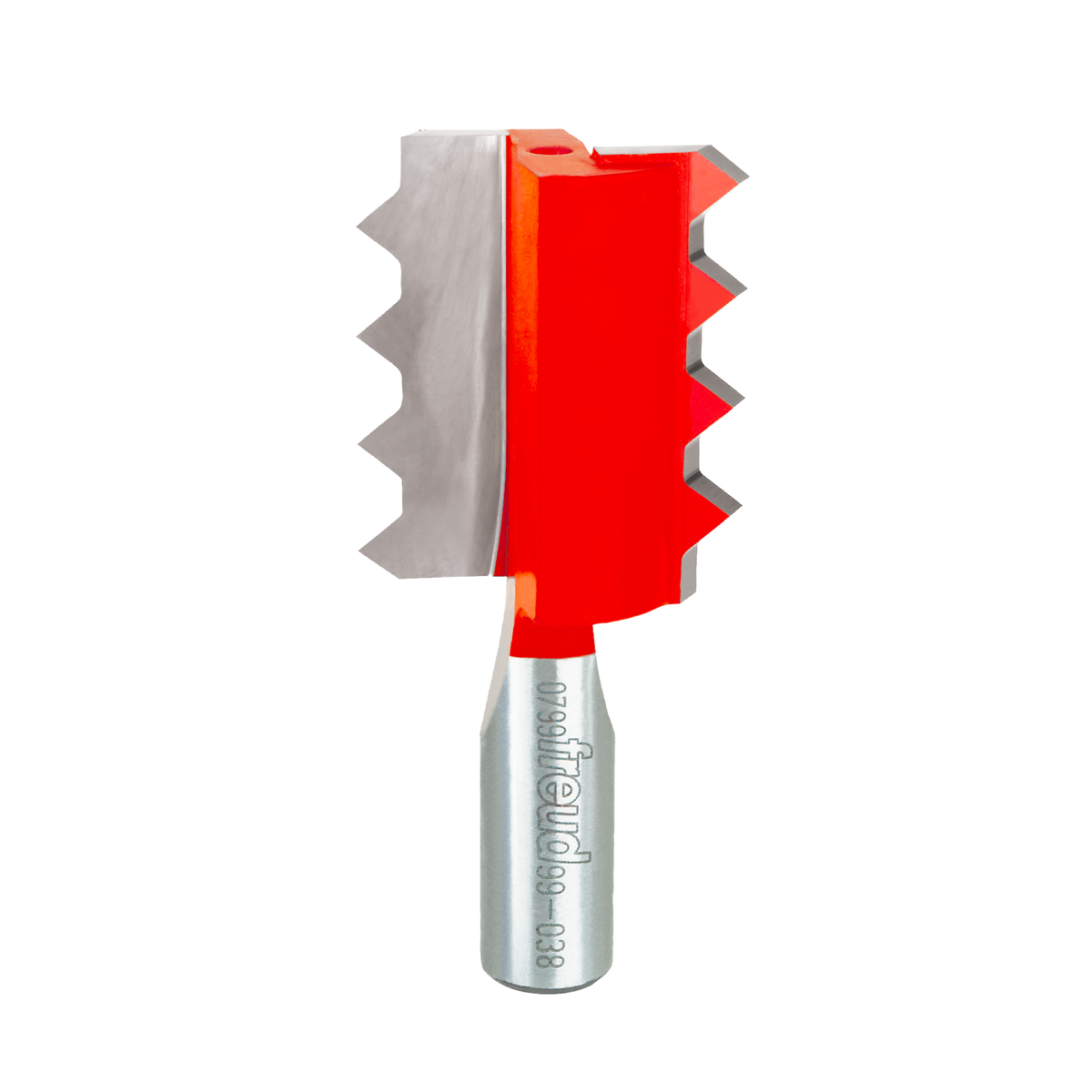

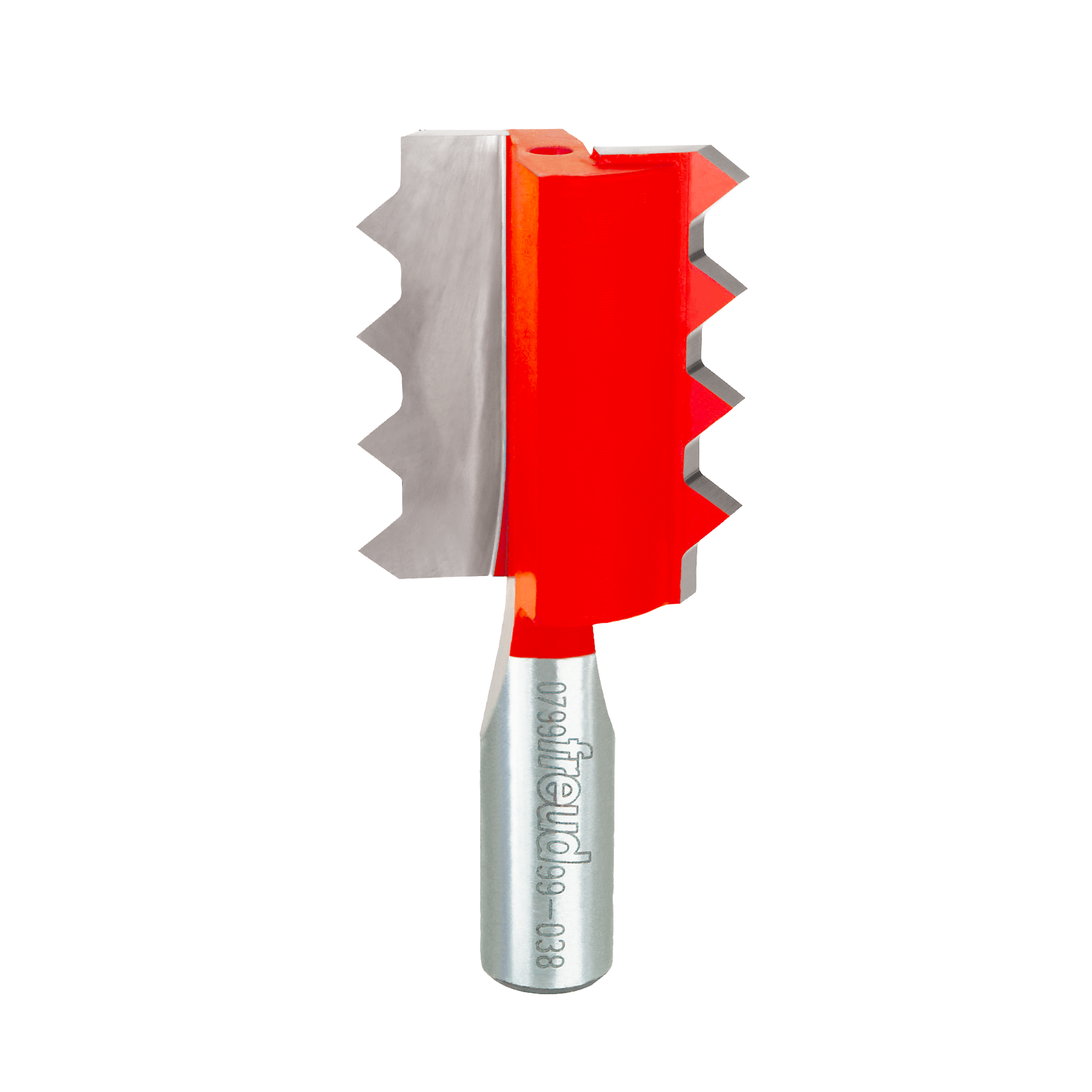

Freud 99-038 1-3/8" (Dia.) Raised Panel “V” Joint Bit

These bits are specially designed to make glue joints for raised panels. Thanks to the interlocking "V" Joints, the mating...
Vendor: Freud
SKU: 99-038
Product Type: Router Bits
$122.97
$154.36
$122.97
Free Shipping On Orders $75+
Secure Checkout Secure Payment
Freud 99-038 1-3/8" (Dia.) Raised Panel “V” Joint Bit

Freud 99-038 1-3/8" (Dia.) Raised Panel “V” Joint Bit

$154.36 $122.97

Freud 99-038 1-3/8" (Dia.) Raised Panel “V” Joint Bit

$154.36 $122.97
Description
x
These bits are specially designed to make glue joints for raised panels. Thanks to the interlocking "V" Joints, the mating surfaces are at an angle to the finished surface of the panel, not vertical, so the dark lines like those created by standard finger joint bits are not visible. Use to rout hardwood, softwood or composites in table-mounted routers. Bit does not have to be precisely centered in the work piece. Simply adjust the bit height 3/32" after routing the first piece, and then rout the mating piece.
  • The perfect joint for glued-up raised panels
  • Bit does not have to be centered in the wood. Simply raise or lower the bit 3/32" to route the mating edge
  • Cuts all hardwood, softwood and composites
  • Use on table-mounted routers
  • Freud Perma-SHIELD® Coating
Features
x
Sku 99-038
Brand Freud
Pack Quantity 1
Item UPC 008925382140
Item Quantity 1
Item Weight (lb) 0.4
Country of Origin Italy
Number of Cutters 2
Max RPM 16000
Angle (d) 80°
Carbide Height (h) 1-37/64"
Product Type Router Bits
Overall Diameter 1-3/8"
Minor Height (m) 3/16"
Overall Length 3-1/16"
Shank Diameter 1/2"
Cutting Materials Veneered Plywood; Hardwoods; Softwoods; Composites
Specifications
