CMT 226.590.14 STAINLESS STEEL 14’’x0.087”/0.071”x1’’ T=90 FWF

CMT 226.590.14 Stainless Steel Blade 14 x 90 x 1 inch

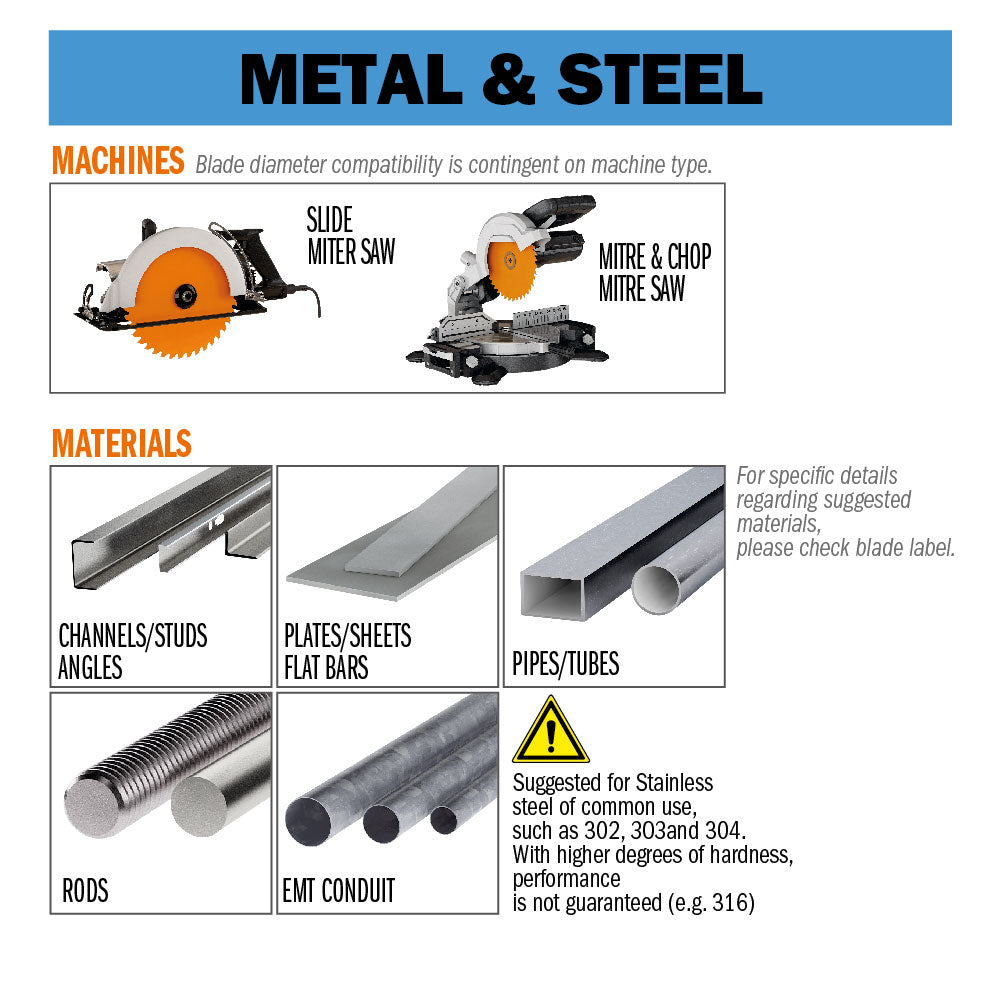

Application: For crosscutting a variety of materials such as iron, steel, pvc, compound materials, melamine.

Machines: For “dry” crosscutting a variety of materials and ferrous materials such as iron, steel, pvc, compound materials, melamine.

Material: For stainless steel, studs and galvanized stuff. Max Suggested Hardness HB420/HRC45.

Warning: Not recommended for non-ferrous metals, wood, glass, concrete, plastic.

• Diameter mm 355
• Bore diameter mm 25,4
• Repetitions per minute 1800
• Number of cutting edges 80
• Kerf thickness 2,2
• Plate thickness 1,8
• Hook angle 10°

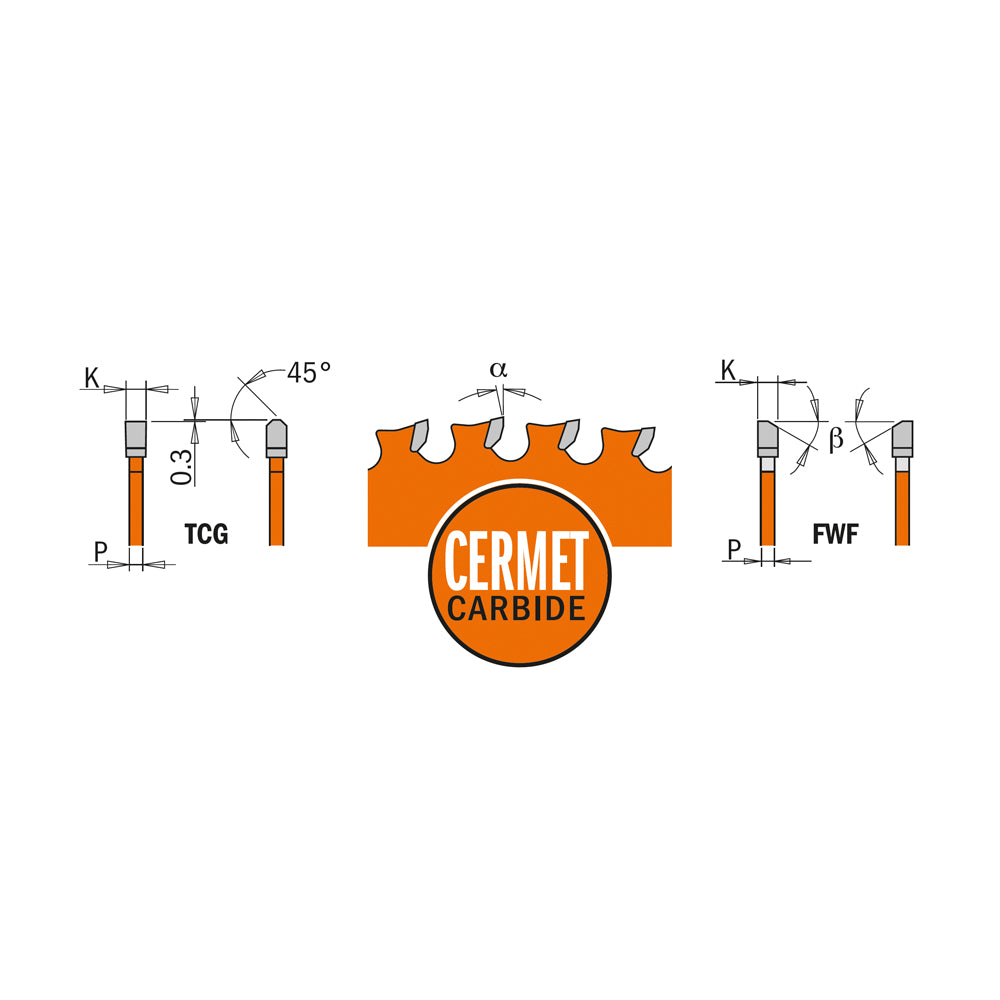

• Type of grind 8° FWF
• Teeth height mm 5
• ISO grade K30
• Hardness (HV10) 1.520
• Transverse rupture strength (N/mm2) 2.300
